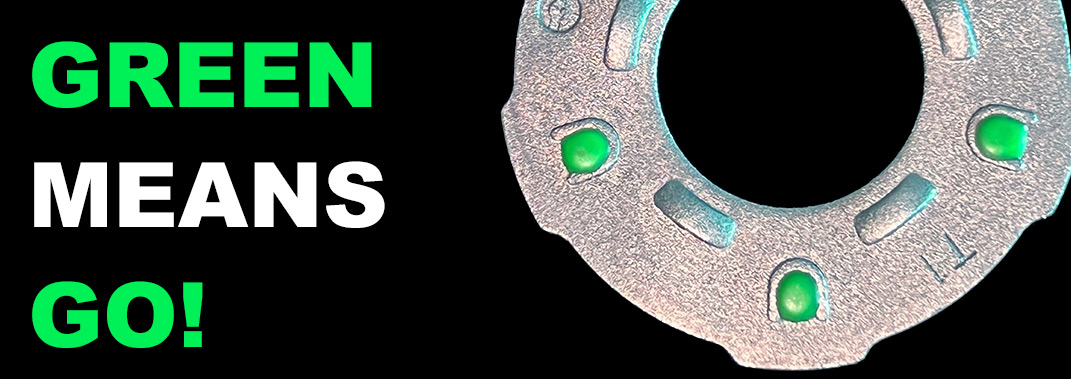

NEW ViewTite® Nut-Side Self-Indicator

The most reliable tensioning. Now with fast, easy visual indication!

TurnaSure is proud to introduce the patent-pending ViewTite® Nut-Side Self-Indicator, the latest innovation from the pioneers in load indicators. ViewTite® DTIs are manufactured to ASTM F959/F959M and are suitable for use in bolted structural steel framing connections in accordance with AISC‐360.

DURING SNUG TIGHTENING: The hardened washer first makes contact with our patented protrusions, which compress linearly as bolt tension increases and snugging is completed. The elastomer does not emit during snug-tightening.
DURING FINAL TIGHTENING: Reduced height ‘horseshoes' compress, releasing a precise measure of elastomer from multiple sides of the VeiwTite indicator.
AFTER TIGHTENING: WHEN YOU SEE GREEN... you know your structural bolts are correctly tensioned!
PLACEMENT MATTERS: Unlike traditional self-indicators, you don't have to worry about surface finish variations in the materials being bolted. Our elastomer is on the top of the indicator, which contacts the smooth surface of the hardened washer.

Watch the demo to see it in action!



AVAILABILITY:
ViewTite® ASTM F959 nut-side self-indicators are available in Type 325 and Type 490 strength levels for 3/4in, 7/8in, 1in and 1 1/8”in bolts and soon 1-1/4in and 1 ½” Type 325 and Type 490s.

Contact TurnaSure today for more information, availability and quotes.
